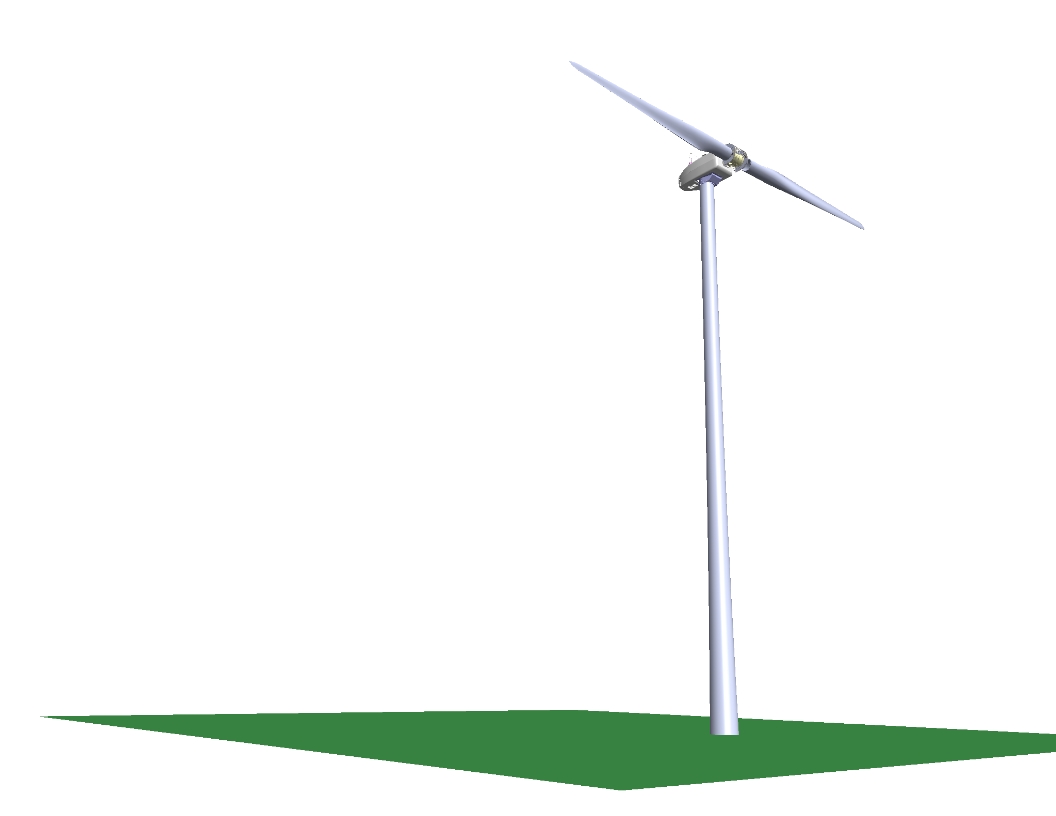

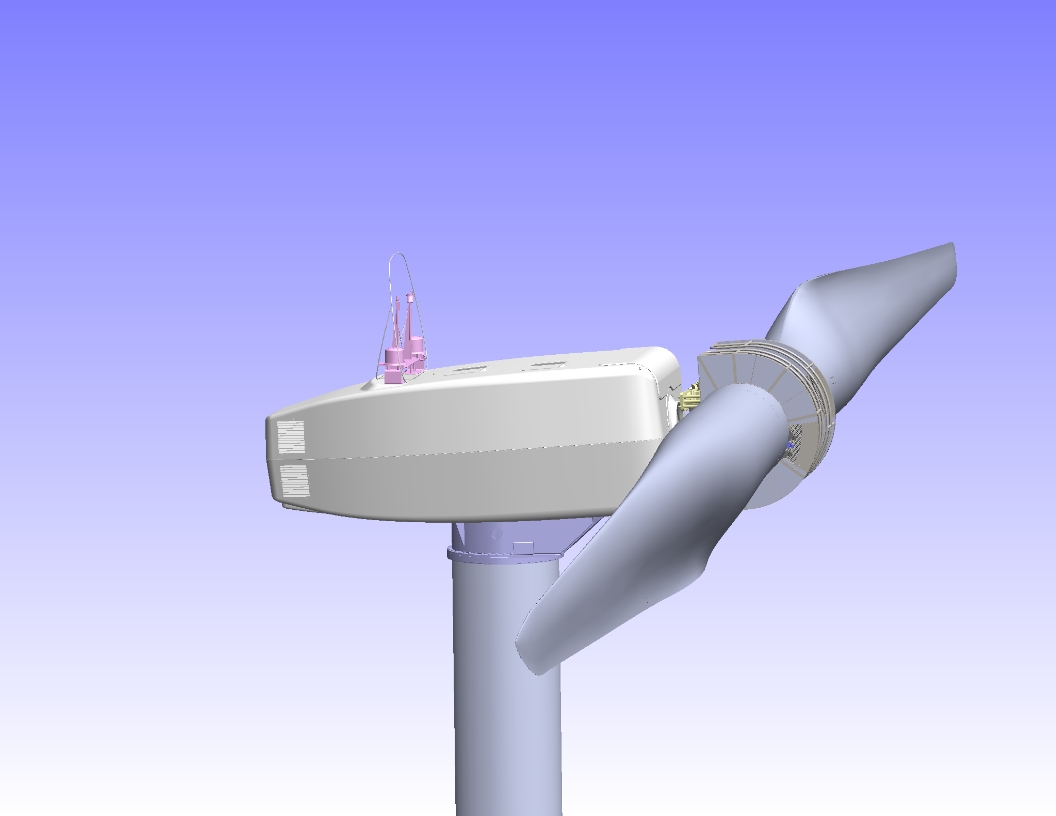

1MW Wind turbine nacelle structure,
tower 70m, blades 59m span,
nacelle 7.5x3.6x2.6m, 38tons.

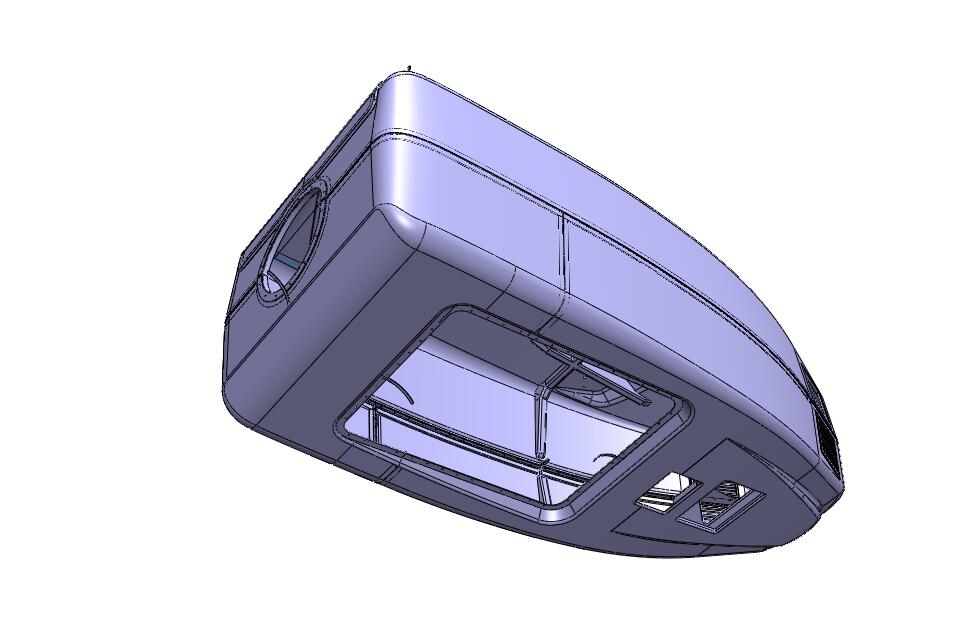

GRP composite sandwich.
Redesigned on a tight
6 month schedule

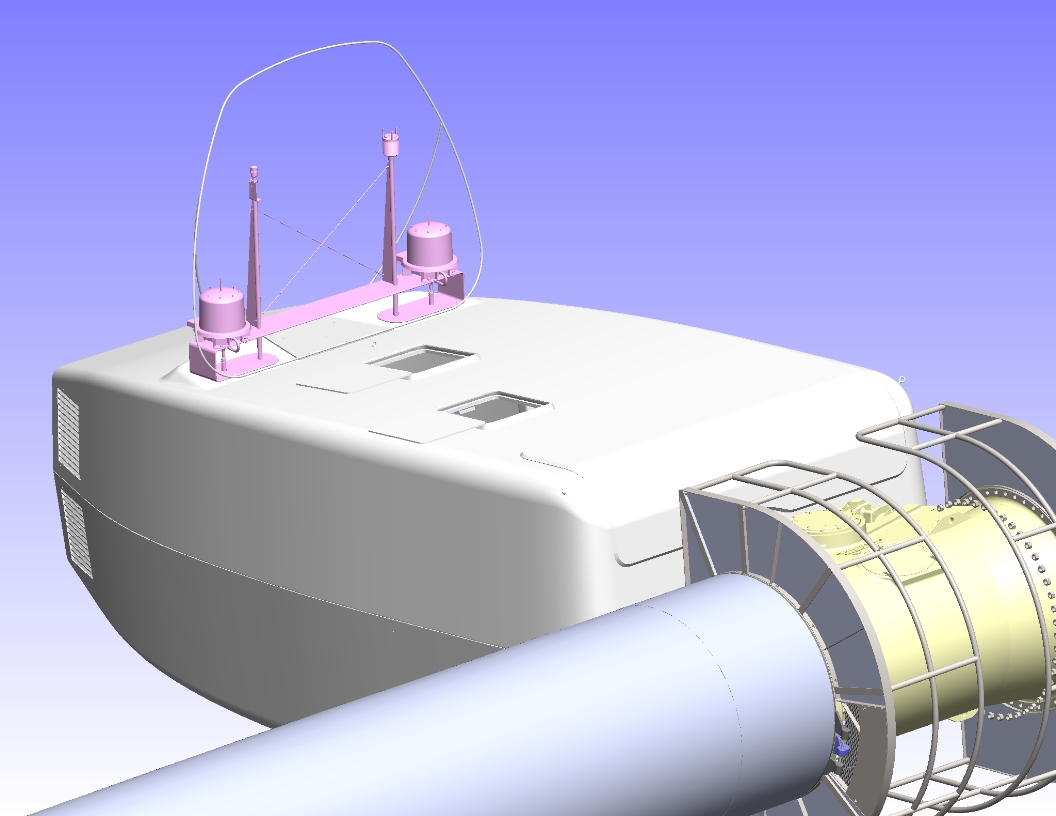

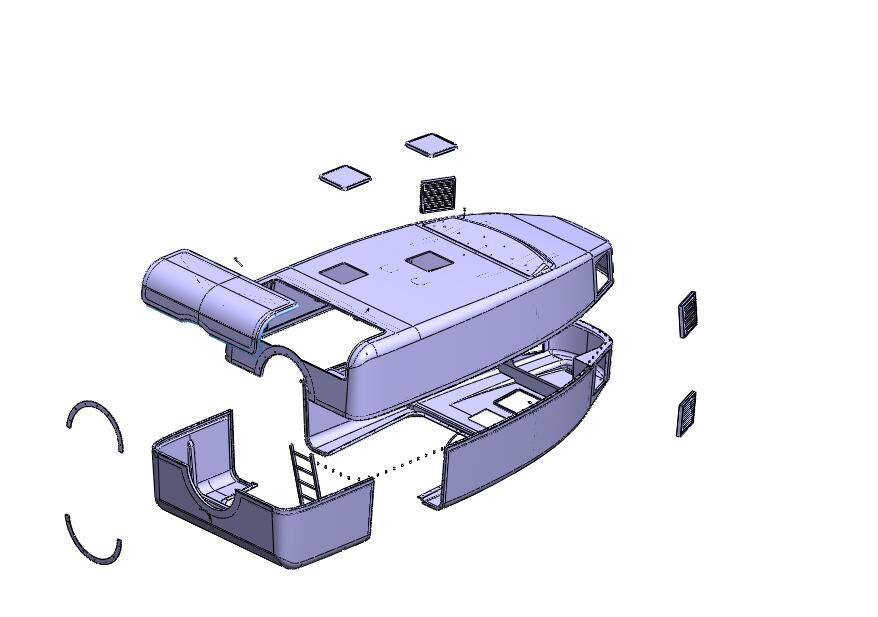

Concept development of work-flow, ergonomic access and
layout of GRP structure, structural sub-frame, hoist, escape equipment, hydraulics package, cooling package, silencing
package, cable routing, lightning protection and meteorological instrumentation.
Design engineering of
components, materials, fabrication, assembly, bill of materials.
Project management
of design schedule, sub-contractors, engineering change order meetings, supplier and component sourcing, regulatory and standards
compliance.
Production design, manufacturing
data and control drawing sets.
