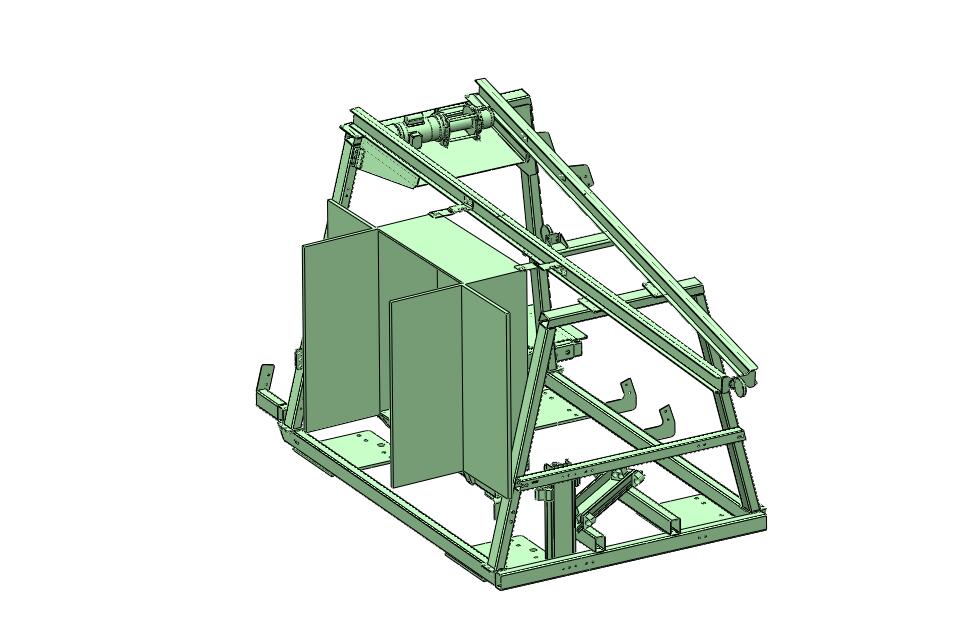

Wind turbine nacelle structural sub-frame.
5x2.5x2.3m, 800 kg, structural steel

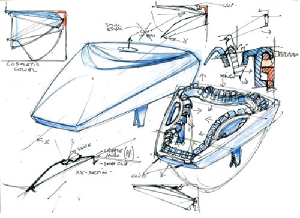

Concept development of ergonomic access and layout in GRP structure, integrating hoist, escape equipment, hydraulics package platform, cooling package mounts, silencing package mounts, cable routing trays and hi-tension clamps.

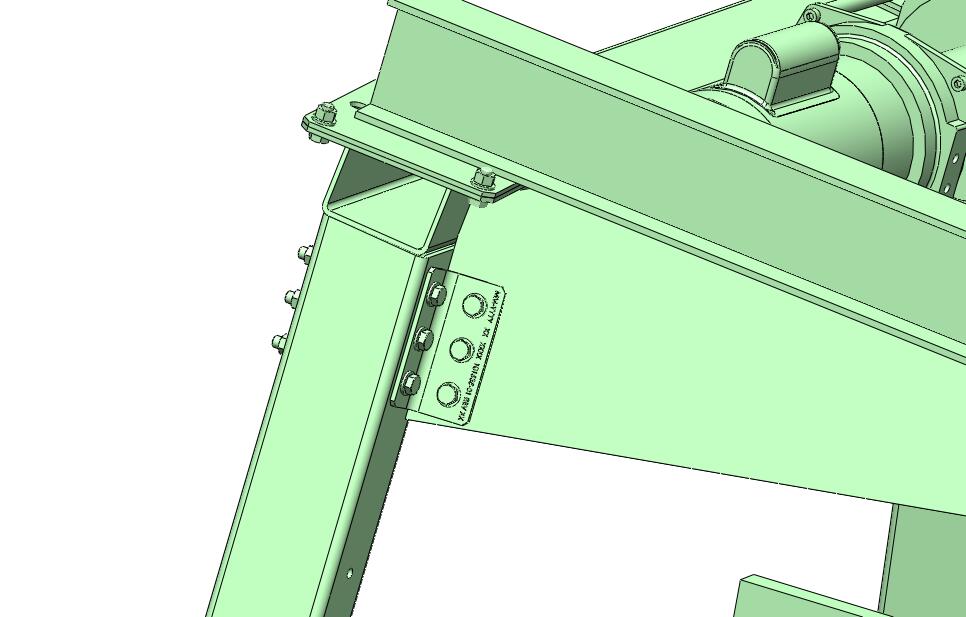

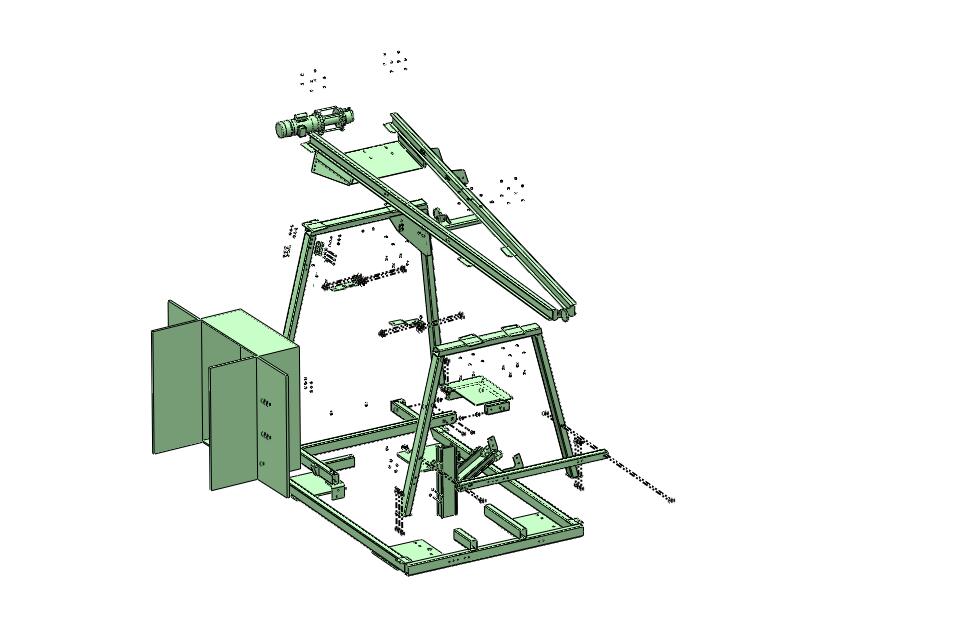

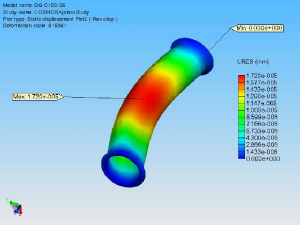

Design engineering of components, materials, fabrication, assembly, bill of materials.
Project management of design schedule, sub-contractors, engineering change order meetings, supplier and component sourcing, regulatory and standards compliance.

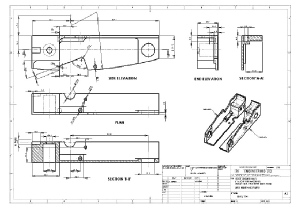

Production design, manufacturing data and control drawing sets.
